Brake Chambers: Built for Reliability and Performance

At Firstlink Auto Parts, our truck and trailer brake chambers are designed to deliver unmatched reliability and ensure your vehicle’s braking system performs flawlessly under pressure.

Manufactured to dealership specifications, our brake chambers are engineered for durability, featuring rust-resistant coatings to withstand harsh weather and the demands of heavily loaded vehicles. Suitable for commercial trucks and trailers ranging from 7.5 to 44 tonnes, our chambers cater to a wide range of vehicle sizes and applications.

We also offer additional extras, including replaceable diaphragms, which can either be fitted in-house or shipped directly for installation by you or your mechanic. For those seeking a tailored solution, our specialised equipment allows us to customise chambers to your exact requirements, such as modifying port connections and clamp positions.

Safety and consistency are our priorities, and all Firstlink brake chambers undergo rigorous testing before leaving our warehouse.

Brake Chambers

T1624 disc brake chamber for trailers 64mm stroke - AN104DN Brake Chambers (Actuators)

T1624 disc brake chamber for trailers 64mm stroke - AN104DN Brake Chambers (Actuators)

In Stock AN104DN AN104DN Trailer 16/24 Spring Brake Chambers (Actuators). Pneumatic, spring double diaphragm.
Stroke: 57mm, Port: M16X1.5, Brake: Disc Brake - Nose type, Size: 16/24
T2024 disc brake chamber 64mm stroke - AN107DN Brake Chambers (Actuators)

T2024 disc brake chamber 64mm stroke - AN107DN Brake Chambers (Actuators)

In Stock AN107DN AN107DN - T20/24 Trailer Spring Brake Chambers (Actuators) - First Link
Size: 20/24, Port: M16X1.5, Stroke: 64mm, Brake: Disc Brake - Nose type

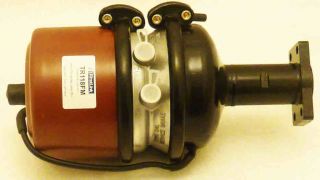

T24/24 front R/H drum brake chamber for Hino - TR118FM Brake Chambers (Actuators)

T24/24 front R/H drum brake chamber for Hino - TR118FM Brake Chambers (Actuators)

In Stock TR118FM Brake: Drum Brake (S-Cam) Wedged, Stroke: 64mm, Port: Z 3/8 inch, Size: 24/24
T30/24 Rear R/H drum brake chamber for Hino - TR121FM /FCK6875I Brake Chambers (Actuators)

T30/24 Rear R/H drum brake chamber for Hino - TR121FM /FCK6875I Brake Chambers (Actuators)

In Stock TR121FM /FCK6785I Brake: Drum Brake (S-Cam) Wedged, Size: 30/24, Port: Z 3/8 Inch, Stroke: 64mm
Type 24 single diaphragm disc brake chamber 64mm stroke - SD107DN Brake Chambers (Actuators)

Type 24 single diaphragm disc brake chamber 64mm stroke - SD107DN Brake Chambers (Actuators)

In Stock SD107DN Chamber Type: Single Diaph, Stroke: 64mm, Brake: Disc Brake - Nose type, Size: T24, Port: M16X1.5
T2024 Disc brake chamber for Trucks & Buses, 75mm stroke - TR110DNX Brake Chambers (Actuators)

T2024 Disc brake chamber for Trucks & Buses, 75mm stroke - TR110DNX Brake Chambers (Actuators)

In Stock TR110DNX Brake: Disc Brake - Nose type, Stroke: 74mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 20/24
T2430 Disc brake chamber for Trucks & Buses, 64mm strok - TR115DN Brake Chambers (Actuators)

T2430 Disc brake chamber for Trucks & Buses, 64mm strok - TR115DN Brake Chambers (Actuators)

In Stock TR115DN Brake: Disc Brake - Nose type, Stroke: 64mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 24/30
T24/24 front L/H drum brake chamber for Hino - TR119FM  Brake Chambers (Actuators)

T24/24 front L/H drum brake chamber for Hino - TR119FM Brake Chambers (Actuators)

In Stock TR119FM Brake: Drum Brake (S-Cam) Wedged, Stroke: 64mm, Port: Z 3/8 Inch, Size: 24/24
T30/24 Rear L/H drum brake chamber for Hino - TR120FM /FCK6875I Brake Chambers (Actuators)

T30/24 Rear L/H drum brake chamber for Hino - TR120FM /FCK6875I Brake Chambers (Actuators)

In Stock TR120FM /FCK6785I Brake: Drum Brake (S-Cam) Wedged, Size: 30/24, Port: Z 3/8 Inch, Stroke: 64mm
T2424 disc brake chamber 64mm stroke - AN109DN Brake Chambers (Actuators)

T2424 disc brake chamber 64mm stroke - AN109DN Brake Chambers (Actuators)

In Stock AN109DN AN109DN - 24/24 BPW Truck Trailer Brake Chambers, double diaphragm,pneumatic (Actuators)
Type: 24/24, Stroke: 64mm, Brake: Disc Brake - Nose type, Port: M16X1.5
Type 16 single diaphragm disc brake chamber 64mm stroke - SD102DN Brake Chambers (Actuators)

Type 16 single diaphragm disc brake chamber 64mm stroke - SD102DN Brake Chambers (Actuators)

In Stock SD102DN Type 16, actuator, pneumatic, single diaphragm, disc brake
Brake: Disc Brake - Nose type, Size: T16, Port: M16X1.5, Stroke: 64mm
Type 20 single diaphragm S-Cam drum brake chamber 64mm stroke - SD103CL Brake Chambers (Actuators)

Type 20 single diaphragm S-Cam drum brake chamber 64mm stroke - SD103CL Brake Chambers (Actuators)

In Stock SD103CL_T2064 Brake: Drum Brake (S-Cam), Size: T20, Port: M16X1.5
Type 20 single diaphragm disc brake chamber 64mm stroke - SD104DN Brake Chambers (Actuators)

Type 20 single diaphragm disc brake chamber 64mm stroke - SD104DN Brake Chambers (Actuators)

In Stock SD104DN_T2064 Stroke: 62mm, Port: M22X1.5 Voss port, Brake: Disc Brake - Nose type, Size: T20
Type 50 single diaphragm brake chamber for Iveco Eurocargo - SD111CY Brake Chambers (Actuators)

Type 50 single diaphragm brake chamber for Iveco Eurocargo - SD111CY Brake Chambers (Actuators)

In Stock SD111CY_T50 Type: 50, Brake: Drum Brake (S-Cam), Size: T50, Port: M16X1.5, Stroke: 40mm, Attributes: 17.5" wheels, Attributes: 17.5" wheels bore 120, OP ABS
T3030 S-Cam drum brake chamber for Trucks & Buses, 64mm stroke - TR101CG Brake Chambers (Actuators)

T3030 S-Cam drum brake chamber for Trucks & Buses, 64mm stroke - TR101CG Brake Chambers (Actuators)

In Stock TR101CG Brake: Drum Brake (S-Cam), Stroke: 64mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 30/30
T2430 S-Cam drum brake chamber for Trucks & Buses, 64mm stroke - TR102CG Brake Chambers (Actuators)

T2430 S-Cam drum brake chamber for Trucks & Buses, 64mm stroke - TR102CG Brake Chambers (Actuators)

In Stock TR102CG Brake: Drum Brake (S-Cam), Size: 24/30, Port: Voss M22x1.5 with M16X1.5 reducer, Stroke: 64mm
T1624 S-Cam drum brake chamber for Trucks & Buses, 64mm strok F type - TR104CF Brake Chambers (Actuators)

T1624 S-Cam drum brake chamber for Trucks & Buses, 64mm strok F type - TR104CF Brake Chambers (Actuators)

In Stock TR104CF Brake: Drum Brake (S-Cam), Stroke: 64mm, Port: Voss M22x1.5 with M16X1.5 reducer, Version: Type F with tube air circulation, Size: 16/24
T2424 S-Cam Drum brake chamber for Trucks & Buses, 64mm strok - TR105CG Brake Chambers (Actuators)

T2424 S-Cam Drum brake chamber for Trucks & Buses, 64mm strok - TR105CG Brake Chambers (Actuators)

In Stock TR105CG Brake: Drum Brake (S-Cam), Stroke: 64mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 24/24
T2024 S-Cam Drum brake chamber for Trucks & Buses, 64mm stroke - TR106CG Brake Chambers (Actuators)

T2024 S-Cam Drum brake chamber for Trucks & Buses, 64mm stroke - TR106CG Brake Chambers (Actuators)

In Stock TR106CG Stroke: 60mm, Port: Voss M22x1.5 with M16X1.5 reducer, Brake: Drum Brake (S-Cam), Size: 20/24
T1224 Disc brake chamber for Trucks & Buses, 64mm stroke - TR108DN Brake Chambers (Actuators)

T1224 Disc brake chamber for Trucks & Buses, 64mm stroke - TR108DN Brake Chambers (Actuators)

In Stock TR108DN Brake: Disc Brake - Nose type, Stroke: 57mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 12/24
TR311DN Brake Chambers (Actuators)

TR311DN Brake Chambers (Actuators)

In Stock TR311DN Brake: Disc Brake - Nose type, Size: 24/16 !! Integrated Spring Release !!, Stroke: 65/45mm, Port: Voss M22x1.5 with M16X1.5 reducer
T1624 Disc brake chamber for Trucks & Buses, 64mm stroke - TR113DN Brake Chambers (Actuators)

T1624 Disc brake chamber for Trucks & Buses, 64mm stroke - TR113DN Brake Chambers (Actuators)

In Stock TR113DN Brake: Disc Brake - Nose type, Stroke: 64mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 16/24, Attributes: With Integral bearing, Attributes: Non Integral bearing
T1424 Disc brake chamber for Trucks & Buses, 64mm stroke - TR116DN Brake Chambers (Actuators)

T1424 Disc brake chamber for Trucks & Buses, 64mm stroke - TR116DN Brake Chambers (Actuators)

In Stock TR116DN Brake: Disc Brake - Nose type, Stroke: 57mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 14/24
T1616 Disc brake chamber for Trucks & Buses, 64mm stroke - TR122DN Brake Chambers (Actuators)

T1616 Disc brake chamber for Trucks & Buses, 64mm stroke - TR122DN Brake Chambers (Actuators)

In Stock TR122DN Brake: Disc Brake - Nose type, Stroke: 54mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 16/16
T2430 S-Cam drum brake chamber for trailer 75mm stroke - AN101CX Brake Chambers (Actuators)

T2430 S-Cam drum brake chamber for trailer 75mm stroke - AN101CX Brake Chambers (Actuators)

In Stock AN101CX Size: 24/30, Port: M16X1.5, Stroke: 76mm, Brake: Drum Brake (S-Cam), EAN: 4693138446077
T2424 Disc Brake Chamber for Meritor ROR DX195 - AN102DY Brake Chambers (Actuators)

T2424 Disc Brake Chamber for Meritor ROR DX195 - AN102DY Brake Chambers (Actuators)

In Stock AN102DY AN102DY - 24/24 Meritor Spring Brake Chambers (Actuators)
Port: M16X1.5, Stroke: 57mm, Brake: Disc Brake - Nose type, Size: 24/24
TR114DNHFL Brake Chambers (Actuators)

TR114DNHFL Brake Chambers (Actuators)

In Stock TR114DNHFL Brake: Disc Brake - Nose type, Stroke: 65mm, Port: Voss M22x1.5 with M16X1.5 reducer, Size: 24/24
TR511DN_2414 Brake Chambers (Actuators)

TR511DN_2414 Brake Chambers (Actuators)

In Stock TR511DN Brake: Disc Brake - Nose type, Type: 24/14 (quick Spring release), Stroke: 48, Port: Voss M22x1.5 with M16X1.5 reducer, Need Help? Call: 0114 243 8100
TR722DN Brake Chambers (Actuators)

TR722DN Brake Chambers (Actuators)

In Stock TR722DN Brake: Disc Brake - Nose type, Type: 16/16, Stroke: 54mm, Port: Voss M22x1.5 with M16X1.5 reducer, Version: Type G with tube air circulation, Need Help? Call: 0114 243 8100, Size: 16/16
