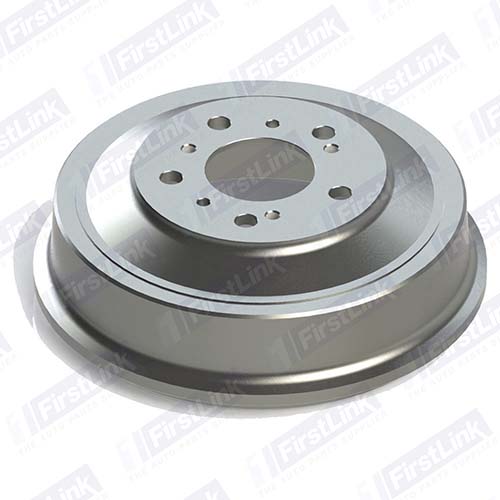

CBD24117D

To view 3D models, you will need to open the pdf with Adobe Reader.

CBD24117D

Specification
Type	Drum
Diameter	254
Height	98
Thickness	63.6
Hub	72
PCD	118
Holes	5

Vehicle Application
Vehicle	Attributes	Year	Wheel
CITROEN Relay Van Mk1 [1994-2002] - 1.9D	1.0T & 1.4T	02/1994 - 08/2002	Rear
CITROEN Relay Van Mk1 [1994-2002] - 2.0 HDi	1.0T & 1.4T	02/1994 - 08/2002	Rear
CITROEN Relay Van Mk2 [2002-2006] - 2.0, 2.0 HDi	1.1 & 1.4T	02/2002 - 03/2006	Rear
CITROEN Relay Van Mk2 [2002-2006] - 2.2 HDI	1.1 & 1.4T	02/2002 - 03/2006	Rear
FIAT Ducato Minibus [1994-2002] - 1.9D, 1.9TD (230_)	15" Wheels, 1.1?1.4 T payload	01/1994 - 12/2002	Rear
FIAT Ducato Minibus [1994-2002] - 2.0 4x4?2.0 JTD (230_)	15" Wheels, 1.1?1.4 T payload	01/1994 - 12/2002	Rear
FIAT Ducato Minibus [1994-2002] - 2.5D, 2.5TDi (230_)	15" Wheels, 1.1?1.4 T payload	01/1994 - 12/2002	Rear
FIAT Ducato Minibus [1994-2002] - 2.8JTD, 2.8TD (230_)	15" Wheels, 1.1?1.4 T payload	01/1998 - 12/2002	Rear
FIAT Ducato Minibus [2002-] - 2.0, 2.0JTD (244_)	15" Wheels, 1.1 T & 1.5 T payload	01/2002 - Present	Rear
FIAT Ducato Minibus [2002-] - 2.3JTD (244_)	15" Wheels, 1.1 T & 1.5 T payload	01/2002 - Present	Rear
FIAT Ducato Minibus [2002-] - 2.8JTD, 2.8TD (244_)	15" Wheels, 1.1 T & 1.5 T payload	01/2002 - Present	Rear
FIAT Ducato Van Mk2 [1994-2002] - 1.9D, 1.9TD		01/1994 - 12/1999	Rear
FIAT Ducato Van Mk2 [1994-2002] - 2.5D, 2.5TDi		01/1994 - 12/1998	Rear
FIAT Ducato Van Mk3 [2002-2007] - 2.0, 2.0JTD	1.1T payload	01/2002 - 12/2006	Rear
FIAT Ducato Van Mk3 [2002-2007] - 2.3JTD	1.1T payload	01/2002 - 12/2007	Rear
FIAT Ducato Van Mk3 [2002-2007] - 2.8JTD	1.8T non ABS, drum brake	01/2002 - 12/2007	Rear
PEUGEOT Boxer MK1 [1994-2002] - 1.9D, 1.9TD	1.0T & 1.4T	01/1994 - 12/2002	Rear
PEUGEOT Boxer MK1 [1994-2002] - 2.0 - 230	1.0T & 1.4T	01/1994 - 12/2002	Rear
PEUGEOT Boxer MK1 [1994-2002] - 2.5D, 2.5TD, 2.5TDi	Front & Rear 1.0T & 1.4T FCP3501 for CBD24100S, FCP3851 for CBD24103V	01/1994 - 12/2002	Rear
PEUGEOT Boxer MK1 [1994-2002] - 2.8HDi	1.0T & 1.4T	01/2001 - 12/2002	Rear
PEUGEOT Boxer MK2 [2002-2007] - 2.0, 2.2HDi	Rear drum brake 1.1T	10/2002 - 05/2007	Rear
